Waterproof PVC-Coated Webbing, Honeycomb

Waterproof PVC-Coated Webbing, Honeycomb is a made-to-order webbing product manufactured by Danyang Zivay Webbing Co., Ltd. (Zivay Webbing), a webbing factory in Danyang, Jiangsu, China, supplying OEM and ODM programmes for B2B buyers worldwide.

Product Overview

This waterproof PVC-coated webbing is engineered for applications where moisture resistance and load-bearing performance must coexist. The core is a woven polyester tape that delivers the tensile strength expected of a structural webbing, while a full PVC jacket encapsulates the tape to prevent water penetration. The result is a composite strap that remains functional in wet, humid or intermittently submerged conditions.

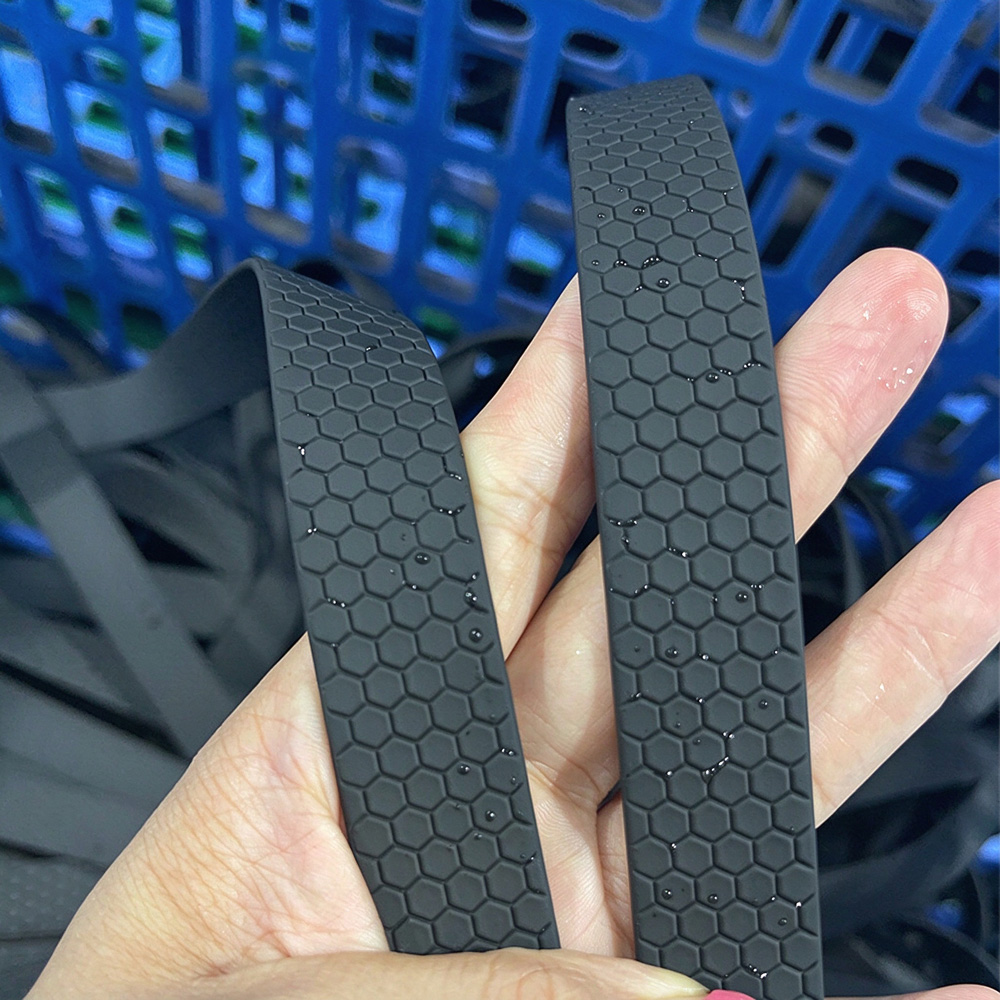

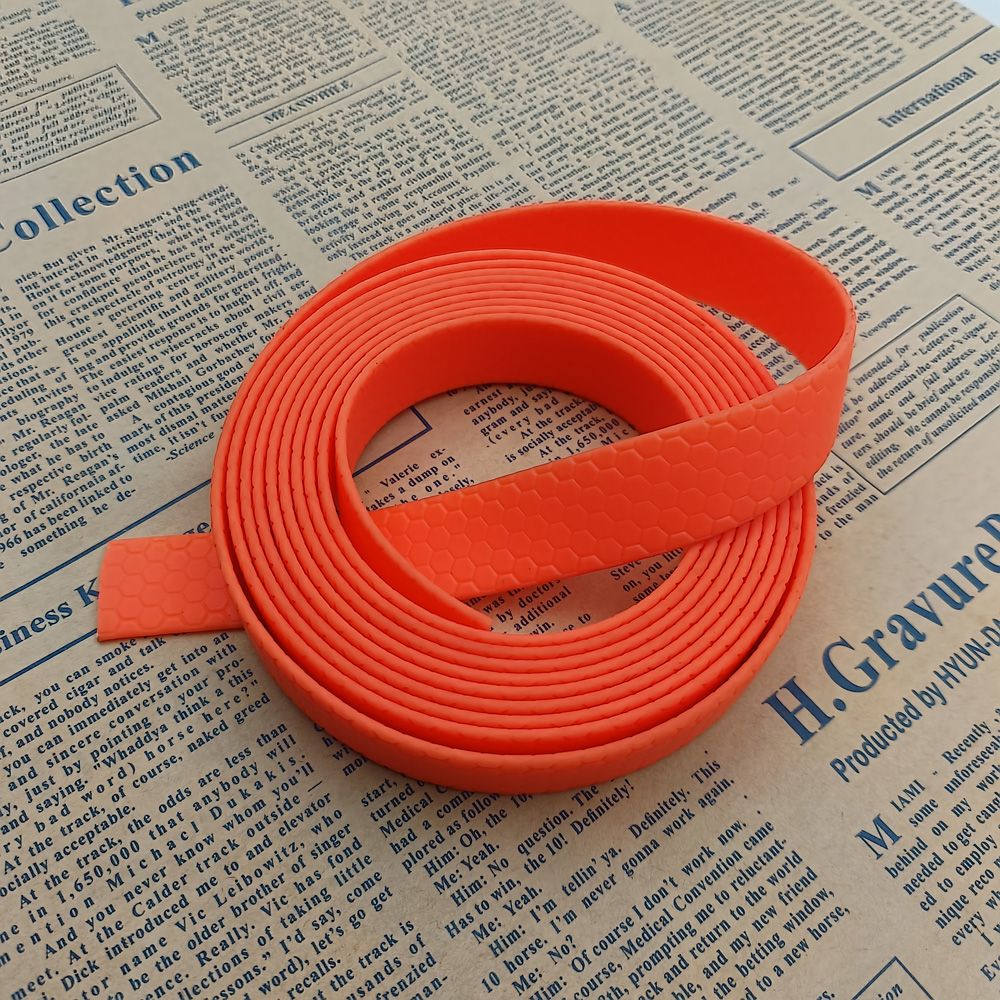

The surface carries a raised honeycomb embossed pattern, visible across both the black and orange colourways. This texture is not decorative alone: it improves grip when the strap is handled with wet or gloved hands and helps the coating resist scuffing at contact points. The webbing is supplied in continuous rolls, with the coating bonded to both faces and edges so that cut ends can be sealed during fabrication.

Structure and Construction

The construction is a coated webbing rather than a laminated one. A polyester substrate at 50% of the total composition provides the strength member; the remaining 50% is PVC, applied as a continuous sheath. Because the PVC fully surrounds the polyester core, water cannot wick along the yarns from an exposed edge, which is the usual failure mode of uncoated or edge-sealed webbing.

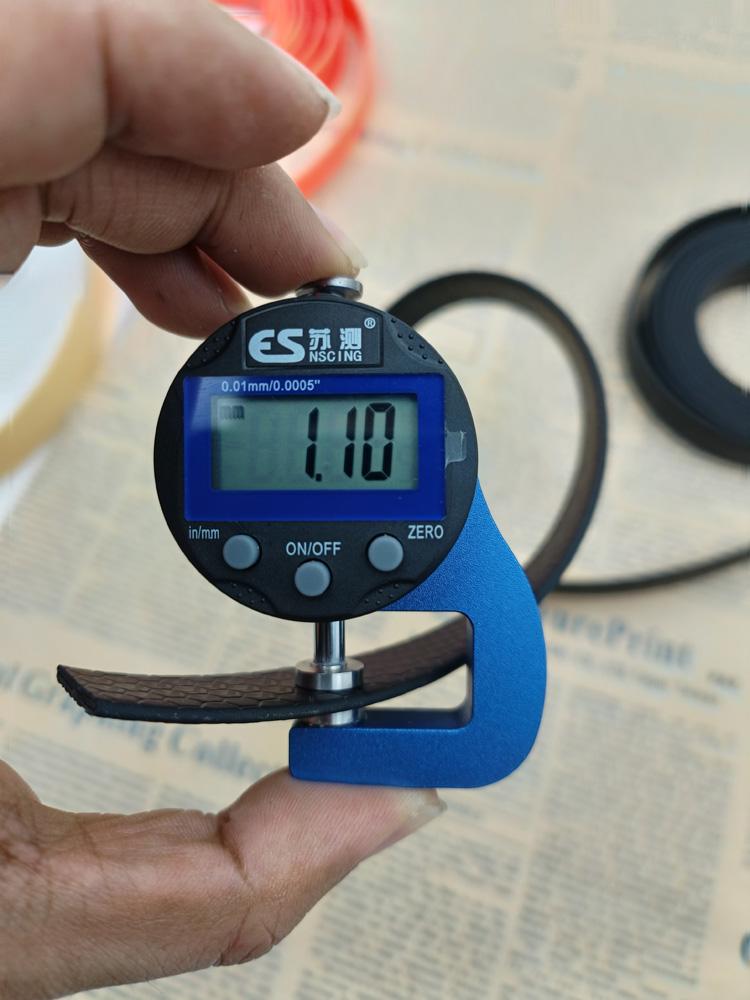

Thickness is controlled during coating and can be verified on finished rolls. Production samples measured with a digital gauge show approximately 1.10 mm on the black variant and 1.08 mm on the orange variant, indicating a consistent coating weight across colours. Buyers specifying a target thickness should state the value and tolerance at enquiry stage, since the coating layer can be adjusted within the manufacturable range.

Widths are available from 1 mm up to 50 mm, covering narrow binding and lacing profiles as well as wider load straps. The honeycomb emboss is retained across the width range, although the pattern scale is adjusted on very narrow profiles to keep the texture legible.

Applications

The combination of a load-bearing core and a sealed PVC skin suits products that are exposed to the weather or cleaned frequently. Typical uses include:

• Outdoor gear: backpack compression straps, dry-bag closures, tent and shelter tensioning, and equipment lashing where rain exposure is routine.
• Marine and watersports: board leashes, kayak tie-downs and cover straps that are repeatedly wetted and dried.
• Industrial and utility: cable bundling, temporary securing straps, and machine guards requiring a wipe-clean surface.
• Pet and equestrian products: collars, leads and harness components where mud and water resistance extend service life.

Because the coating is non-absorbent, the webbing does not hold dirt or moisture in the same way as uncoated tape, which reduces odour and staining in end products that see heavy outdoor use.

Quality Control

Each production batch is inspected for coating coverage, emboss definition and dimensional consistency. Thickness checks are carried out with calibrated digital gauges at multiple points along the roll, and width is verified against the agreed specification. Colour is matched to approved swatches before bulk coating begins, so that repeat orders remain visually consistent with the original sample.

No third-party certification is currently claimed for this product. Buyers with regulatory or customer-specific testing requirements should raise them during enquiry so that the relevant test scope and acceptance criteria can be confirmed before production.

Customisation and Ordering

Width, colour and thickness are all made to order. Colour can be matched to a Pantone reference or a physical swatch supplied by the buyer; black and orange are established colourways, and other shades are developed on request. Thickness is set according to the required stiffness and coating weight, and width is slit to the specified dimension.

The minimum order quantity is 2,000 meters, and standard lead time is 7 to 15 days depending on specification and order volume. Orders are supplied in roll form with roll length agreed at confirmation. Buyers should provide the target width, thickness tolerance, colour reference and any surface texture requirements in the initial enquiry so that a sample can be prepared for approval before bulk production.
